We offer superior quality Hacksaw
Machines to our clients. These machines are precision engineered
so as to meet the modern demands of several industries. Due to
their smooth & swift functioning ability they are able to
operate in a spontaneous way which aids the worker in
consistently carrying his work with ultimate efficiency. Some of
the specifications of this hacksaw machine are following:
Bed: The bed is available as a single piece casting. It
has wide rigid casting for the collection of coolant, swarf and
also houses the V-belt device.
Saw Frame: The rigid saw frame ensures a square &
parallel cut & the cut takes place on the backward pull
stroke. To prevent the wear of the blade, it is hydraulically
lifted out of contact with work place on the forward stroke up.
The Drive: The drive is attached through V-Pulleys with
provision to adjust the complete tension of the V-Belts. The
shafts are fitted with ball bearings and taper and ball bearings
to eliminate friction.
Speed: Specific speeds has been provided for different
kind of metals in order to make it suitable. High speed for
metals like mild steel, brass, copper etc. and low speed for
cast iron.
Feed Saw: Two levers are provided to hydraulically
control the Feed Saw at the dash-pot. One controls the rate of
feed and the other enables the bow slide to be raised or lowered
and after the completion of the cut, the motor gets
automatically switched off.
Vice: The vice is rigid construction. It has two jaws,
one jaw remains fixed and the other is adjusted according to the
size of the material to be cut.
Coolant: A coolant tank is enclosed within the base of
machines with constant speed to supply continuous cooling to the
saw blade.
Electricals: A Push button starter is fitted with an
adjustable trip mechanism that helps in stopping the machine
soon when the blade is clear from the work at extra cost.
|
 |
| Technical Specifications |
| Model |
M-175 |
M-200 |
M-250 |
M-300 |
M-350 |
M-400 |
M-500 |
M-600 |
| Cap. Of Round Bar |
175 |
200 |
250 |
300 |
350 |
400 |
500 |
600 |
| Cap of Square Bar |
125 |
150 |
200 |
250 |
275 |
325 |
350 |
425 |
| Stroke |
135 |
135 |
140 |
140 |
140 |
135 |
150 |
150 |
| Stroke per min. (approx) |
100-120 |
100-120 |
85-100 |
85-100 |
85-100 |
70-85 |
70-85 |
70-85 |
| Blade size |
12”-14” |
14”-16” |
16”-18” |
18”-20” |
20”-22” |
22”-24” |
24”-32” |
30”-36” |
| Electric Motor |
1H.P. |
1H.P. |
2H.P. |
2H.P. |
2H.P. |
3H.P. |
5H.P. |
5H.P. |
| RPM of Motor |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
960 |
960 |
| Length |
1000 |
1000 |
1150 |
1250 |
1300 |
1500 |
1650 |
1750 |
| Width |
600 |
600 |
625 |
650 |
650 |
675 |
700 |
725 |
| Height |
800 |
800 |
1000 |
1000 |
1100 |
1200 |
1300 |
1400 |
| Weight (approx) |
325Kg. |
335Kg. |
450Kg. |
550Kg. |
650Kg. |
750Kg. |
1100Kg. |
1200Kg. |
| Weight with Packing |
400Kg. |
450Kg. |
550Kg. |
650Kg. |
775Kg. |
900Kg. |
1300Kg. |
1400Kg. |
| V-Belts Required |
4Pcs. |
4Pcs. |
4Pcs. |
4Pcs. |
4Pcs. |
5Pcs. |
6Pcs. |
6Pcs. |
|
Standard Accessories
Mechanical Coolant Pump, Motor Pulley, Starter Plate, Length Guage
Belts Guards, Flexible Coolant Pipe.
Extra Accessories
V-belts, Blade, Hydraulic Oil, Bar Stand, Motor, Starter, Electrical
Wiring, Three Speed Gear Box.
Note
All Specifications are subject to change without prior notice.
| Horizontal
Swing Type Bandsaw (B250 HDHL DA) |
|
We offer Horizontal Swing Type
Bandsaw (B250 HDHL DA) to our clients that is known for its
superior performance. Supreme efficiency and long term
durability are blended in this bandsaw machine. Our bandsaw
machines are highly appreciable because of their durability and
unparalleled service. Further, this bandsaw features:
- Heavy Duty, High Speed
- High Productivity
- Large Cross Section of Swing Frame
- Integral Front & Rear Bed Design
|
 |
| Specifications |
200mm |
250mm |
300mm |
400mm |
|
| Cutting Cap |
Round 200mm |
Round 250mm |
Round 300mm |
Round 400mm |
|
|
Square 170mm |
Square 220mm |
Square 270mm |
Square 370mm |
|
| Saw Blade |
3000 x 27 x 0.9 |
3760 x 27 x 0.9 |
3760 x 27 x 0.9 |
4570 x 34 x 1.1 |
|
| Blade Tension |
Mechanical |
Mechanical |
Mechanical |
Mechanical |
|
| Motors |
| Saw Blade motor |
1.H.P. 960 rpm |
1.H.P. 960 rpm |
1.5H.P. 960 rpm |
2.H.P. 960 rpm |
|
| Hydraulic Motor |
1.H.P. 1440 rpm |
1.H.P. 1440 rpm |
1.H.P. 1440 rpm |
1.H.P. 1440 rpm |
|
| Dimensions (L x W x H) |
1600 x 370 x 1200 |
1800 x 500 x 1400 |
1800 x 500 x 1500 |
2000 x 600 x 1800 |
|
|
Standard
Equipment
- Complete hydraulic System
- Complete coolant System
- Step pulley with V-belt
- Carbide & roller blade guide
|
|

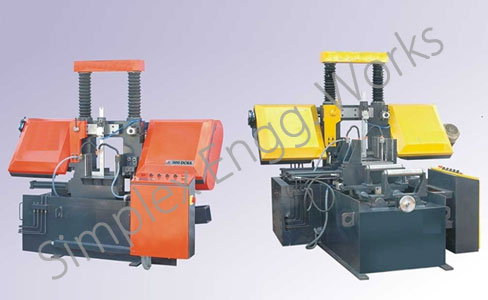

| Double Column Bandsaw Machine |
|
|
| Technical Specifications |
| Model |
210 |
300 |
525 |
650 |
800 |
1000 |
1250 |
1500 |
| Cutting Cap. In mm Round Square |
210 × 210 |
300 × 300 |
525 × 525 |
650 × 650 |
800 × 800 |
1000 × 1000 |
1250 × 1250 |
1500 × 1500 |
| Blade Size (in mm) |
3505 × 27 |
4100 × 34 |
5800 × 41 |
8000 × 67 |
8800 × 67 |
12300 × 67 or 80 |
13100 × 67 or 80 |
16100 × 80 |
| Saw Motor (in mm) |
3 |
5 |
10 |
15 |
20 |
20 |
25 |
25 or 30 |
| Hyd. Motors |
1 HP |
1.5 HP |
2 HP |
2 HP |
2 HP |
2 HP |
3 HP |
3 HP |
| Coolant Motors |
0.16 |
0.16 |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
| Chip Conveyor Motor HP |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
0.33 |
0.33 |
0.33 |
| Over Dimensions For DBCSA Model |
| Length |
1900 |
2600 |
3200 |
4100 |
4100 |
6200 |
6700 |
7500 |
| Width |
950 |
1200 |
1250 |
1800 |
1850 |
2700 |
3000 |
3000 |
| Height |
1450 |
1650 |
1700 |
2400 |
2400 |
3500 |
4000 |
4000 |
| Cutting Speed (m/min) |
20 to 100 mtr/min in steps std. Supply suitable for cutting all types metals ranging of hardness BHN 70 to 350
|
| Power Supply |
440 V + 10%
50 Hz. 3 Phase, AC Supply Control Circuit with 220 V Standard Supply
|
| ACCURACY & OUT PHASE |
100mm 0 ± 0.1mm
|
Benefits of Machine :
- Vibration less operation for better accuracy
- Replacement of component / part is easy
- Precision work can be done
- Accurate technical feature
- User's friendly machine
- Maintenance cost is very less
- Machine life is very high
|
|
Optional Features :
- Bundle cutting attachment
- Conveyor table for mass production
- Provisional for conversion of semiautomatic to Automatic machine features
|
|
|
|
