Home » Drilling Machine

Drilling Machine

A drill machine is a mechanical, motor-driven device that is used to create a hole or to enlarge an existing hole in a solid material. A drill machine is fitted with an end-cutting tool that is rotated with high power which holds the capability of "drilling" a whole into the material. Drill machines are used in simple applications such as drilling a hole into the materials whereas it is used for metalworking in the industrial sector.

A Radial Arm Drilling Machine is a large Geared Head Drilling Machine in which the Head can be moved along an Arm that radiates from the Machine's Column. As it is possible to swing the Arm relative to the Machine's Base, a Radial Arm Drilling Machine is able to operate over a large area without having to reposition the work piece. This saves considerable time because it is much faster to reposition the drill head than it is to unclamp, move, and then re-clamp the work piece to the Table. The size of work that can be handled may be considerable, as the Arm can swing out of the way of the Table, allowing an overhead crane to place a bulky work piece on the table or base. A vise may be used with a Radial Arm Drilling Machine, but more often the work piece is secured directly to the table or base, or is held in a fixture. Power spindle feed is nearly universal with these machines and coolant systems are common. Larger size machines often have power feed motors for elevating or moving the arm. The biggest Radial Arm Drilling Machines are able to drill holes as large as four inches (101.6 millimeters) diameter in solid steel or cast iron. Radial Arm Drilling Machines are specified by the diameter of the column and the length of the arm. The length of the arm is usually the same as the maximum throat distance.

Simplex Engg. Works

All Geared Radial Drilling Machine
All Geared Radial Drilling Machine is manufactured using best quality materials and are in conformity with international quality standards. The range of drilling machine is manufactured as per the industry standards and finds applications in diverse industries.

FEATURES


  • The Radial Drilling Machine have a Thick Base Plate and Vertical Column to Which is Mounted a Horizontal Arm.
  • The Horizontal Arm Moves Up and Down on the Column and Can be Rotated/ Locked at Any Position.
  • The Drilling Head Move Along the Radial Arm Towards or Away from the Column and Can Be Locked at any Position.
  • The Spindle is Housed in the Drilling Head , Its Rotates and also Moves Up and Down.
  • The Drilling Head also have Counter Balance Arrangement.
All Geared Radial Drilling Machine All Geared Radial Drilling Machine
Technical Specifications
Drill Head SDM-40B SDM-40C SDM-50B SDM-50C SDM-65B SDM-75B SDM-85B
Drilling Capacity (In steel/ cast iron) 40/50 40/50 50/60 50/60 65/75 75/85 85/95
Drilling Depth 180 180 225 250 325 355 400
Taper Spindle Nose Socket MT-4 MT-4 MT-5 MT-5 MT-5 MT-6 MT-6
No. of Spindle Speeds/ Range (RPM) 6
(55-665)
12
(56-1000)
9
(45-750)
12
(45-1000)
12
(18-810)
12
(18-810)
12
(16-1250)
No's of Spindle Feeds/ Range (mm/rev.) 3
(0.1-0.2)
3
(0.1-0.2)
3
0.1-0.2)
6
(0.125-1.25)
6
(0.125-1.25)
6
(0.125-1.25)
6
(.08-1.0)
Drill Power 1.5 kw 2.2 kw 2.2 kw 3.7 kw 3.7 kw 5.5 kw 7.5 kw
CAPACITY
Drilling Radius Max. 1050 1050 1100 1300 1700 1900 2200
Drilling Radius Min. 375 375 450 450 500 600 650
Drilling Head Traverse 675 675 650 850 1200 1300 1550
Distance Base Plate to Spindle Max. 1000 1000 1300 1300 1500 1750 1800
Distance Base Plate to Spindle Min. 225 225 225 325 300 400 550
Diameter of Column Sleeve 255 255 310 310 355 405 450
Working Surface of Base Plate 900*680 900*680 920*830 1120*830 1500*1020 1850*1160 2130*1300
DIMENSIONS OF BASE PLATE
Length*Width*Height 1480*
700*200
1480
*700*200
1585
*850*200
1800
*850*200
2265
*1040*225
2650
*1180*225
3150
*1300*250
Arm Elevator Motor 0.75 kw 0.75 kw 1.5 kw 1.5 kw 2.2 kw 3.7 kw 3.7 kw
Standard Box Table 400
*350*350
550
*420*420
550
*420*420
550
*420*420
600
*500*500
600
*500*500
1000
*750*500
Approx. Weight of Machine 1700 Kg. 1850 kg. 3000 kg 3500 kg 4800 kg 6500 kg 10,000 kg

Simplex Engg. Works

Yes! I am Interested

Simplex Engg. Works

Semi Geared Radial Drilling Machine
Semi Geared Radial Drilling Machine offered by us is highly appreciated in market for superior performance. We manufacture these machines with good quality raw material. Further, these machines are designed by experts using latest technology. Semi Geared Radial Drill Machine ensure high durability, tensile strength and resistivity to adverse conditions. These Semi Geared Radial Drill Machine are available with us with drilling capacity of 40 mm, 50 mm & 60 mm.

Semi Geared Radial Drilling Machine
Technical Specifications
Model No SSR 40 SSR 50 SSR 60
Drilling Capacity 40mm 50mm 60mm
Spindle Nose Mt-4 Mt-4 Mt-5
Spindle RPM 85-550 60-650 60-650
Drilling Radius Min / Max 300 / 850 325 / 1050 350 / 1200
Vertical Travel of Arm 900 1100 1250
Main / Elevating Motor 2hp & 1hp 3hp & 1hp 5hp & 2hp


Simplex Engg. Works
Yes! I am Interested

Simplex Engg. Works

Column Drilling Machine
Column Drilling Machine offered by us is extensively used in the field of electrical, automotive, construction, heavy and light engineering industry. Known for massive and rigid construction, fulfill a definite need in the field of drilling, ease of control and operations. The entire assortment of drilling machine is highly acclaimed for large output, good tool life and special finish.

Column Drilling Machine
Ask for Price

Technical Specifications
Drill Head WCD-40 WCD-50
Drilling Capacity In Steel 40MM 50MM
Drilling Capacity In C.I. Casting 50MM 60MM
Taper In Spindle MT-4 MT-5
Spindle Traverse 200MM 250MM
Vertical Adjustment of Spindle Head 450MM 500MM
Distance Between Spindle and Column 400MM 400MM
Number of Spindle Speeds and Range 12(56-1000RPM) 12(45-1000RPM)
Number of Spindle Feeds and Range 3(0.1-0.3MM/REV.) 6(.12-1.25MM/REV.)
Power of Main Motor 3H.P. 5H.P.
Power of Elevating Motor 2H.P. 2H.P.
Motor Suitable for Coolant 0.125 H.P. 0.125H.P.
Working Surface of the Table 500X1000MM
Longitudinal Movement of the Table (Manual) 500MM
CROSS MOVEMENT OF THE TABLE (MANUAL) 300MM
NO. OF T-SLOTS/SIZE (WIDTH) 3NOS./18MM
Overall Size of the Base 1170X770MM
No. of T-Slots 3 NOS./19.2MM
Max. Distance Betwenn Spindle and Base 1100MM 1200MM
Space Occuped LXBXH (Approx) 1600X850X3000MM
Net Weight (Approx) 2350KGS 2700KGS
Cross Weight 2700KGS 3100KGS
Simplex Engg. Works

Yes! I am Interested

Simplex Engg. Works

Gang Drilling Machine
Gang Drilling Machine is widely used when successive operations are to be done. All these gang drilling machines are ideal for auto-parts maintenance & fabrication unit, manufacturers and production workshop and tool rooms. The entire assortment is widely appreciated for excellent durability and superior performance. Drilling machine has various work heads located over a single table.







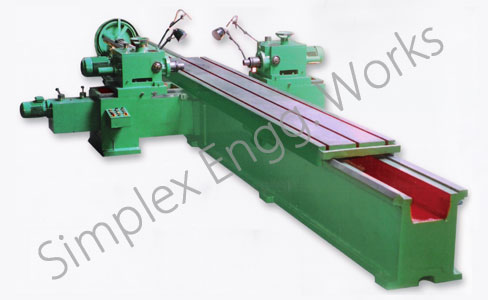

CMS Crossing Drilling Machine
CMS Crossing Drilling Machine offered by us finds applications in railway works for cutting and drilling. All these machines are made available to the clients in different specifications as per the set parameters of quality standards. The range ensures long service life and requires less maintenance.
