Home » Lathe Machine

Lathe Machine

A Lathe machine is a tool that rotates a work piece on its axis in order to perform various operations. Tools are applied to the work piece to create an object having a symmetrical axis of rotation in order to perform actions including cutting, knurling, threading, boring, drilling, facing and turning. Woodturning, metalworking are common applications of lathe machines. Most suitably equipped metalworking lathes can also be used to produce most plane surfaces and screw threads or helices. The work piece is usually held in place by either one or two centers, at least one of which can typically be moved horizontally to accommodate varying work piece lengths. Other work-holding methods include clamping the work about the axis of rotation using a chuck or collet or to a faceplate, using clamps or dogs

At one end of the bed (almost always the left, as the operator faces the lathe) is a headstock. The headstock contains high-precision spinning bearings. Rotating within the bearings is a horizontal axle, with an axis parallel to the bed, called the spindle. Spindles are often hollow, and have exterior threads and/or an interior Morse taper on the "inboard" (i.e., facing to the right / towards the bed) by which work-holding accessories may be mounted to the spindle. Spindles may also have exterior threads and/or an interior taper at their "outboard" (i.e., facing away from the bed) end, and/or may have a hand-wheel or other accessory mechanism on their outboard end. Spindles are powered, and impart motion to the work piece.

The spindle is driven either by foot power from a flywheel or by a belt or gear drive to a power source. In most modern lathes this power source is an integral electric motor, often either in the headstock, to the left of the headstock, or beneath the headstock, concealed in the stand.

In addition to the spindle and its bearings, the headstock often contains parts to convert the motor speed into various spindle speeds. Various types of speed-changing mechanism achieve this, from a cone pulley or step pulley, to a cone pulley with back gear (which is essentially a low range, similar in net effect to the two-speed rear of a truck), to an entire gear train similar to that of a manual-shift auto transmission

The counterpoint to the headstock is the tailstock, sometimes referred to as the loose head, as it can be positioned at any convenient point on the bed by undoing a locking nut, sliding it to the required area, and then re-locking it. The tail-stock contains a barrel which does not rotate, but can slide in and out parallel to the axis of the bed, and directly in line with the headstock spindle. The barrel is hollow, and usually contains a taper to facilitate the gripping of various type of tooling. Its most common uses are to hold a hardened steel center, which is used to support long thin shafts while turning, or to hold drill bits for drilling axial holes in the work piece. Many other uses are possible.

Metalworking lathes have a carriage (comprising a saddle and apron) topped with a cross-slide, which is a flat piece that sits crosswise on the bed, and can be cranked at right angles to the bed. Sitting atop the cross slide is usually another slide called a compound rest, which provides 2 additional axes of motion, rotary and linear. Atop that sits a tool post, which holds a cutting tool which removes material from the work piece. There may or may not be a lead screw, which moves the cross-slide along the bed.

FEATURES

Bed
Head Stock
Carriage
The Apron
Lead Screw
Tail Stock
Simplex Engg. Works

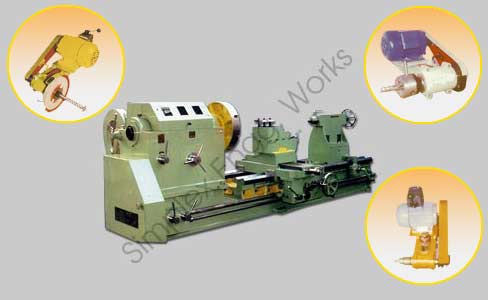

V Belt Lathe Machine
V Belt Lathe Machine manufactured by us rotates the work piece on its axis to perform various operations such as cutting, sanding, drilling, knurling and many others. These machines are highly versatile, and are ideal for precisely machining relatively hard objects. Owing to high efficiency, robust structure and longer service life, these machines finds applications in ship building, mining, steel rolling mills, textile, oil mills and power plants, repairing shops, workshops, paper mills and tool rooms.





Technical Specifications
MODEL SL 6 SL 8 SL 10 SL 12a SL 12b SL 12c
Length of Bed 6ft/1828mm 8ft/2438mm 10ft/3048mm 12ft/3657mm 12ft/3657mm 12ft/3657mm
Width of bed 14inch/350mm 16inch/400mm 18inch/450mm 20inch/500mm 22inch/550mm 24inch/600mm
Height of Center 12inch/300mm 14inch/350mm 16inch/400mm 18inch/450mm 20inch/500mm 22inch/550mm
Swing over Slide 16inch/400mm 20inch/500mm 24inch/600mm 28inch/700mm 30inch/750mm 32inch/800mm
Swing in Gap 34inch/865mm 40inch/1016mm 44inch/1117mm 54inc/1370mm 58inch/1473mm 60inch/1524mm
Admit Between Centers 33inch/838mm 54inch/1371mm 72inch/1830mm 92inch/2336mm 90inch/2286mm 88inch/2235mm
Spindle Hollow 2-1/2"/65mm 3-1/8"/80mm 3-5/8"/88mm 4-1/8"/103mm 4-1/8"/103mm 4-1/8"/103mm
Type of Bed Pedestals Pedestals Pedestals Planner Planner Planner
Hp. Required 2*960 2*960 3*960 3*960 3*960 5*960
T.P.I. of Lead Screw 2 2 2 2 2 2

Standard Accessories
  • Steady Rest
  • Follow Rest
  • Motor Plate
  • Change gears
Optional Accessories
  • 3 Jaw Self Centering chuck
  • 4 Jaw Independent Chuck
  • Coolant Pump
  • Key Way Cutting Attachment
  • Grinding Attachment
  • Taper Turning Attachment
  • Electrical
Simplex Engg. Works

Yes! I am Interested

Simplex Engg. Works

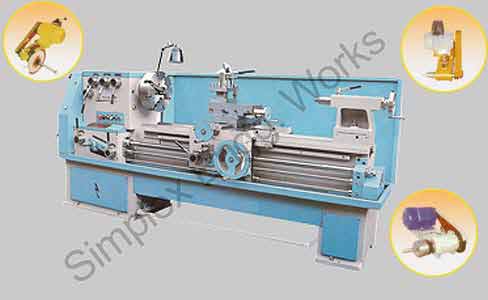

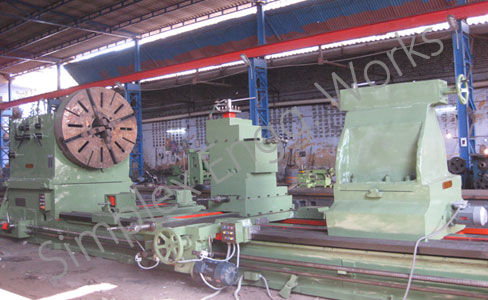

All Geared Lathe Machine
All Geared Lathe Machine can take up substantial loads and are ideal to work-on in the industry. Featuring tight tolerances at theoretic price, these lathe machines are widely used in electrical, automobile, engineering and many other industries.



Technical Specifications
MODEL SGL6 SGL8 SGL10 SGL12 SGL14
Bed Length 6 ½ ft 8 ½ ft 10 ½ ft 12ft 14ft
Width of bed 375mm 450mm 500mm 550mm 600mm
Height of center 300mm 400mm 450mm 500mm 550mm
Swing over bed 600mm 800mm 900mm 1000mm 1100mm
Swing over cross slide 325mm 530mm 610mm 660mm 710mm
Swing in gap 865mm 1200mm 1300mm 1350mm 1500mm
Admit between centers 1000mm 1500mm 2000mm 2200mm 2500mm
No's of spindle speeds 8 9 8 8 8
RPM Range 30-720 30-720 25-475 25-275 25-275
Spindle Hollow 65mm 90mm 105mm 103mm 103mm
Metric Threads 1-14mm 1-14mm 1-14mm 1-14mm 1-14mm
With Worth Threads TPI 2-30TPI 2-30TPI 2-30TPI 2-30TPI 2-30TPI
D.P. Threads 6-80DP 6-80DP 6-80DP 6-80DP 6-80DP
No of Feeds 30 30 30 30 30
Range of Long Feed 0.2 to 3.0mm 0.2 to 3.0mm 0.2 to 3.0mm 0.2 to 3.0mm 0.2 to 3.0mm
Range of Transverse feed 0.033 to 0.50 0.033 to 0.50 0.033 to 0.50 0.033 to 0.50 0.033 to 0.50
Electric motor Hp/Rpm 3*1440 5*1440 7.5*1440 7.5*1440 10*1440

Standard Accessories
  • Steady Rest
  • Follow Rest
  • Electric motor with control panel
Optional Accessories
  • 3 Jaw Self Centering chuck
  • 4 Jaw Independent Chuck
  • Coolant Pump, Key Way Cutting Attachment
  • Grinding Attachment
  • Taper Turning Attachment
  • D.R.O (Digital Read Out System)
Simplex Engg. Works

Yes! I am Interested

Simplex Engg. Works

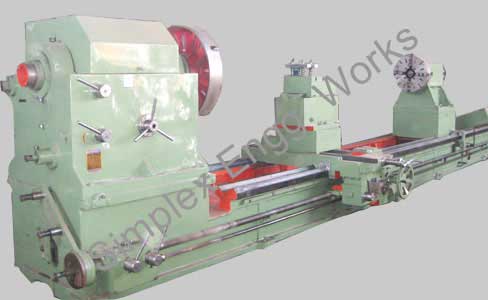

Extra Heavy Duty Lathe Machine
Our offered Extra Duty Lathe Machine is manufactured using superior quality materials and latest technology. Known for low maintenance, long working life and optimum performance, these heavy duty lathe machines are highly demanded in automobile, engineering and electrical industries. These machines are made available in different technical specifications such as length of bed, height of center, width of bed, lead screw diameter and type of bed.


The technical specifications of our range are mentioned below:



Technical Specifications
Model SEL 16mm SEL 18mm SEL 20mm SEL 24mm SEL 26mm SEL 30mm SEL 36mm SEL 40mm SEL 48mm SEL 60mm
Length of Bed 4900 5500 6100 7300 7900 9150 10970 12200 14600 18300
Width of Bed 650 700 750 800 900 1000 1050 1150 1250 1500
Height of Center 600 650 700 750 850 950 1000 1100 1150 1350
Distance Between Center 2850 3450 4050 5150 5750 6800 8500 9600 11700 15000
Spindle Hollow 103 103 103 103 103 103 127 150 150 150
Swing over Saddle (Dia) 950 1050 1100 1150 1400 1600 1650 1850 1950 2350
Swing Over Bed (Dia) 1200 1300 1400 1500 1700 1900 2000 2200 2300 2700
Swing Over Gap (Dia) 1700 1800 1900 2000 2200 2400 2500 2700 2800 3250
No. of Spindle Speeds 6 6 6 6 6 6 6 6 6 6
Lead Screw Dia 60 60 60 60 60 75 80 85 85 85
Lead Screw Pitch T.P.I. 2 2 2 2 2 2 2 2 2 2
H.P. Recommended 7.5 10 10 15 20 20 25 30 30 20

Standard Accessories
  • Steady Rest
  • Follow Rest
  • Motor Plate
  • Change Gears
Optional Accessories
  • 4 Jaw Independent Chuck
  • Coolant Pump
  • Taper Turning Attachment
  • Motorized Apron Gear Box
  • Revolving Tail Stock
  • Bearing Type Roller Guide
  • Electrical
Simplex Engg. Works

Yes! I am Interested

Simplex Engg. Works

Extra Heavy Duty All Geared Lathe Machine
The range of Extra Heavy Duty All Geared Lathe Machine offered by us is widely demanded in various industries due to its noiseless operations, sturdy construction and high performance attributes. Manufactured using best grade materials our assortment is in conformity with international quality standards.


Our range is offered in the following technical specifications to our clients:




Technical Specifications
Model NGL 16mm NGL 20mm NGL 20mmB NGL 26mm NGL 26mmB NGL 30mm NGL 30mmB NGL 36mm NGL 40mm NGL 40mmB NGL 48mm NGL 60mm NGL 80mm
Length of Bed 4900 6000 6100 7800 7900 9150 9150 12200 12200 12200 14600 18300 24400
Width of Bed 650 650 750 750 800 900 1050 1150 1150 1250 1500 1650 1800
Height of Center 600 600 700 700 750 850 1000 1100 1100 1150 1350 1500 1650
Distance Between Center 2850 4050 4000 5800 5500 6800 6700 8400 9600 9500 11900 15500 21500
Spindle Hollow 103 103 103 103 103 103 127 127 127 150 150 150 150
Swing over Saddle (Dia) 900 900 1100 1100 1200 1400 1650 1850 1850 1950 2300 2600 2900
Swing Over Bed (Dia) 1200 1200 1400 1400 1500 1700 2000 2200 2200 2300 2700 3000 3300
Swing Over Gap (Dia) 1700 1700 1900 1900 2000 2200 2500 2700 2700 2800 3200 3500 3800
No. of Spindle Speeds 8 8 8 8 8 8 8 8 8 8 8 8 8
RPM Range 05/
01/50
05/
01/50
05/
01/50
05/
01/50
03/
01/85
03/
01/85
03/
01/85
02/
01/50
02/
01/50
02/
01/50
02/
01/50
02/
01/50
01/
01/40
Lead Screw Dia 60 60 60 60 60 60 75 75 75 75 85 85 85
Lead Screw Pitch T.P.I. 2 2 2 2 2 2 2 2 2 2 2 2 2
H.P. Recommended 10 10 15 15 20 20 25 30 30 30 40 50 50

Standard Accessories
  • Steady Rest
  • Follow Rest
  • Electric motor with control panel
Optional Accessories
  • 4 Jaw Independent Chuck
  • Coolant Pump
  • Taper Turning Attachment
  • Motorized Apron Gear Box
  • Revolving Tail Stock
  • Bearing Type Roller Guide
  • D.R.O (Digital Read Out System)
Simplex Engg. Works

Yes! I am Interested

Simplex Engg. Works
